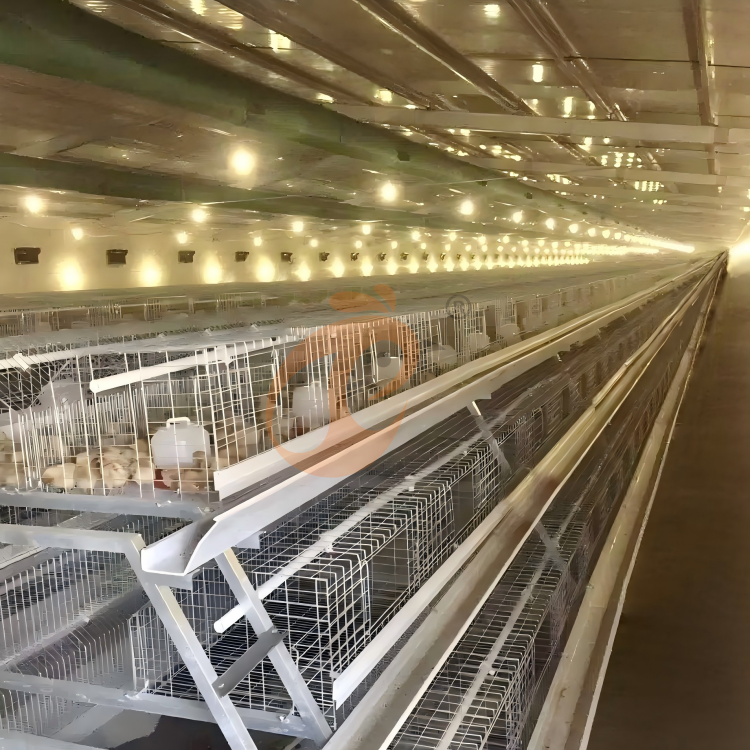

2 Rows A House With 4 Tiers Of Cages

"Fully Automatic A-Type Day Old Chicken Cage Design"

1. Concise Specifications Of Day Old Chicken Cage design

3 Tiers

3 tiers, 4 tiers, 5 tiers

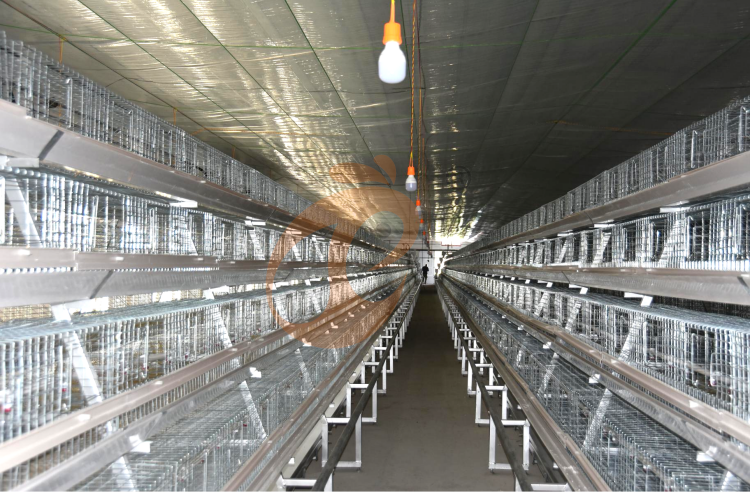

Layout Of Chicken Cage In Poultry House

For your reference only, the following data are is estimated, The exact data is based on the actual needs of the project and customer requirements, or our exact quotation.

"The Advantages Of Our Fully Automatic A-Type Day Old Chicken Cage Design"

2. Intelligent Automation, Modular Efficiency: What Powers The A-Type Day Old Chicken Cage Design

In the A-type day old chicken cage design, automation is not about isolated functions-it's about coordinated precision. Each device plays its part in a responsive, modular ecosystem that drives the entire farm forward with minimal human input.

(1) Automatic Feed Delivery: Triggered By Demand

• A galvanized 3-8 ton feed silo equipped with a level sensor connects directly to the feed conveyor.

• Once feed troughs fall below preset levels, the system automatically initiates feeding at a speed of 18 m/min-completing a full-house feed cycle within 7 minutes.

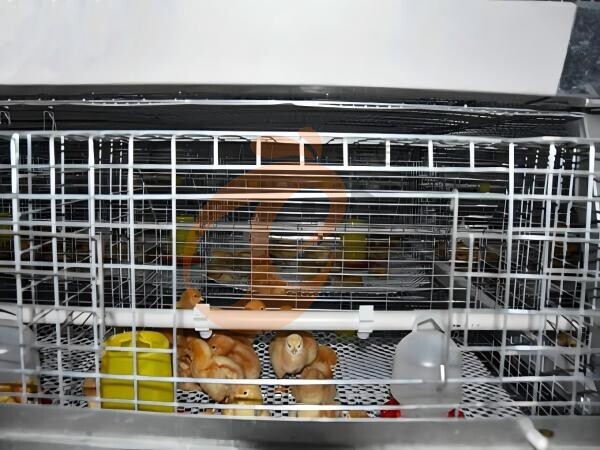

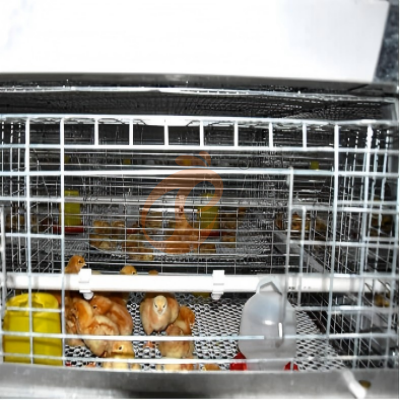

• Less than one or two weeks old chicks use small feeder to eat, workers move feeders out after chicks older


(2) Automatic Watering: Pressure-Stabilized, Flow-Controlled

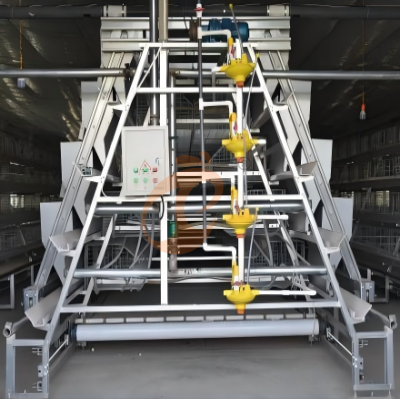

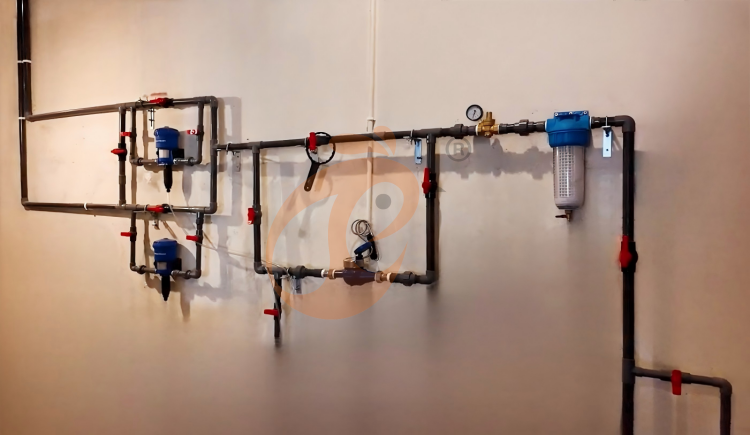

Beginning Water System

• A central water tank and pressure regulator stabilize flow across all PVC lines. Each unit line serves ~40 birds at least, with dual-sided nipple drinkers dispensing water at 30–60 ml/min, preventing leaks or overflow. The height of drinking line is adjust as chicks' age.

• Less than one or two weeks old chicks use small drinker to drinking, workers move drinkers out after chicks older.

• Built-in flush valves allow automatic line cleaning between batches.

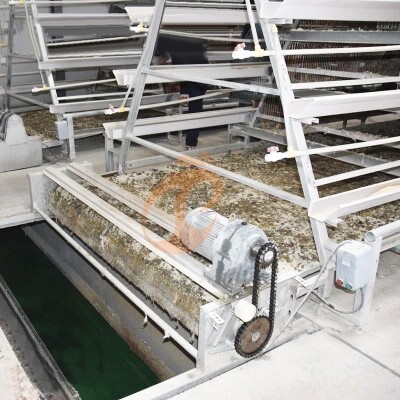

(3) Automatic Manure Removal: Quiet, Scheduled, No Dust

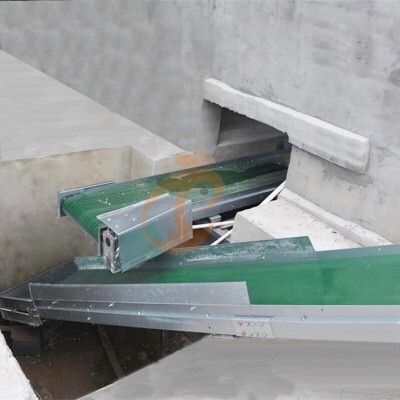

• Under each cage tier, PP conveyor belts match the cage width and operate every two hours for 4–10 minutes.

• Driven by a gear motor, they ensure fresh waste is transported outside the house with minimal dust release or odor-quiet, clean, consistent.

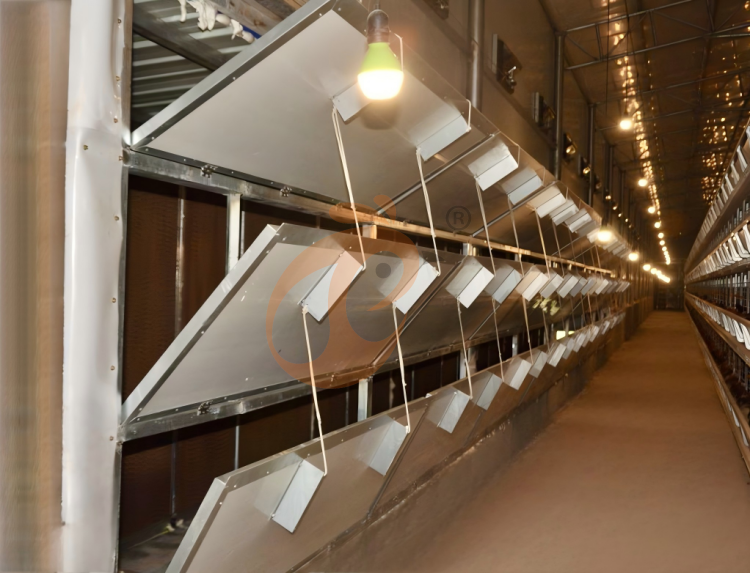

(4) Automatic Climate Control: Real-Time Microclimate Management, Selective Assembly

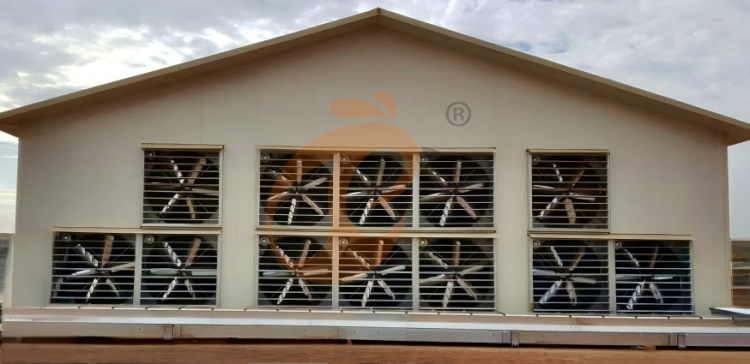

Fans

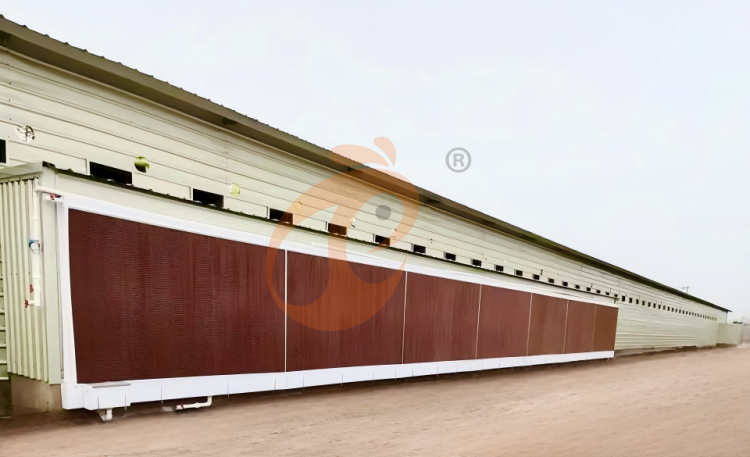

Wet Pad

Fresh Air System

• A high-efficiency ventilation system featuring 36″ axial fans (36,000 m³/h at 0.75 kW) is working in tandem with cooling pads to regulate temperature.

• When outside temperatures exceed 40 °C, the system maintains an internal environment around 28.7 °C. Sensors feed live data into the controller, day old chicken cage design adjusts fan sequencing and pad performance accordingly-no need for manual tweaking.

(5) Automatic Lighting System: Circadian Rhythm By Design

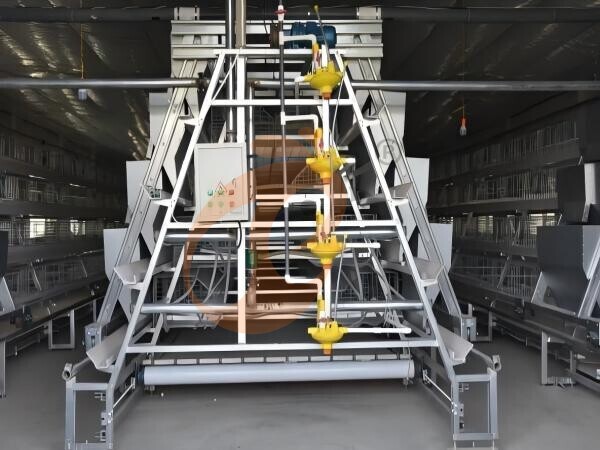

Ending Cage Frame And Lighting

• Programmable zones simulate natural light transitions, promoting healthy feeding and rest cycles.

• Four modes-dawn/dusk, full light, blue night light, and blackout-are timed to reduce stress and improve uniformity.

• At night, soft 2–5 lux lighting prevents panic reactions while ensuring safety.

(5) Warm And Cooling System: Selective Assembly

• Warm device gives a temperature of 28℃-37℃ to baby chicken according to its different age.

3. Day Old Chicken Cage Design With Manual Harvesting Workflow & Labor Analysis

The open design of A-type cages design-usually three tiers high with aisles ≥1.2 m wide and front-opening doors-makes them well-suited for manual catching.

Advantages: Easy visibility, flexible operation, no need for rail systems.

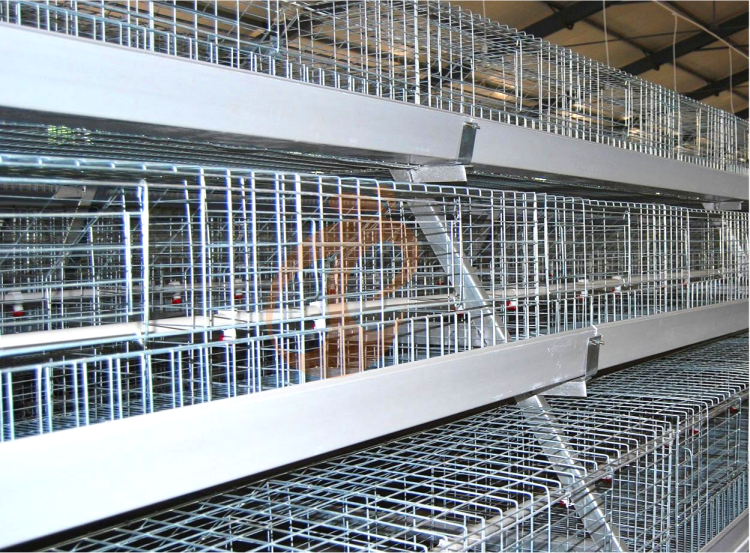

Cage Mesh And Feeding Trough

(1) Standard 10,000-bird house harvest breakdown

(2) Total: ~4.5–5 hours with a 6-person team

(3) Tips: Harvest during cooler hours (2–6 AM or dusk). Withdraw water 12 hours and feed 6 hours in advance to reduce transport stress.

"Why Choose Fully Automatic A-Type Day Old Chicken Cage Design"

4. Full-Cycle Compatibility: Brooding To Finishing In One System

The A-type day old chicken cage design is compatible with "all-in-one" rearing from day-old chicks to market-egg laying chicken.

5. Financial Estimate & Payback Period

For a standard 10,000-bird house using the A-type day old chicken cage design with full automation and manual harvesting, here's what the cost and return look like:

(1) Equipment Investment
Full set of day old cage design with feeding, drinking, manure removal, and climate systems costs about $27,600 to $30,400 USD(Under EU standards).

(2) Operating Cost (Per Batch)
Raising one batch—including chicks, feed, vaccines, utilities, labor, and harvest—costs around $16,300 USD(Under EU standards).

(3) Revenue & Profit
9,600 birds × 1.95 kg × $1/kg = about $17,950 USD in revenue.
Net profit per batch: $1,650 to $1,790 USD(Under EU standards).

(4) Payback Period
Equipment pays for itself in around 1 years.

6. Recommended Types Of Day Old Chicken Cage
