Rearing equipment in poultry farm
Time : 2018-09-05

Basic information

The application of rearing equipment are based on their functions, hence, there is no general application of rearing equipment but the aims of each equipment is to enhance the smooth running of the farm. The application of each equipment is listed below

1. Circular feeder

The feed slowly delivered to the bottom by gravity and it can be attached with feed grills to prevent wastage

2. Manual drinkers

It is used for birds' brood on the floor especially for chicks during their first early weeks

3. Nipple drinkers

Nipple drinkers can be used both in deep litters and in battery cage system. When used in deep litters, it is attached with cup under the nipple to prevent wet litters but while used in cage, it can be used ordinarily

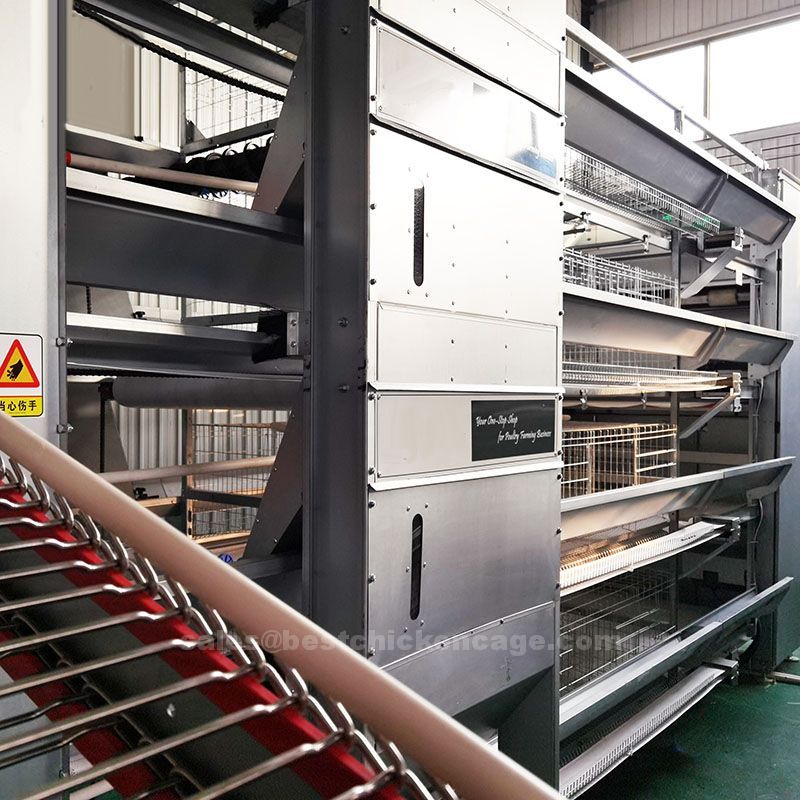

4. Battery cage

This is the assembled mesh welded together in rows and compartment to give birds a comfortable living

5. Automatic feeder

The feed is supplied to the entire length of the poultry house by specially designed feed troughs with auger type or chain type devices to move the feed from the feed bins to the other end

6. Gas heater

Natural gas is connected to heating element which is hanged 3 to 5 feet above the chick to provide heat

7. Electric heater

This type of brooder is provided with heating elements and pilot lamps and some cases thermometer is provided to record the temperature

8. Automatic feeding line

Is an automatic chicken feeding equipment, mainly for broiler feeding? The automatic feeding line consist of the material tower, tray, tube, auger, motor and material level sensor and other components

9. Automatic drinking line

This is an automated drinking system with cups for broiler breeders, broilers, layers and turkeys. It is the solution for poultry farmers who require a large water flow, e.g. in hotter countries or for broiler, breeders and layers

10. Automatic bell drinker

The automatic bell drinker is an innovative equipment ideal for providing clean and continuous water supply for poultry. It is indicated for floor reared poultry (broiler, cockerel, pullet, or kuroiler) and can provide 24 hours supply of water once connected to a filled overhead tank. It is unique, sensitive and maintenance free. This type of waterers has control over the water flow and maintains the required water levels always

Rearing equipment in poultry farm


Raw materials

Raw materials for each equipment is specified below

1. Circular feeder, it is made of high plastic and usually suspended from roof-truss or from separate pipeline for the purpose

2. Manual drinker, it is made up of high-impact plastic in bright colours

3. Automatic bell drinkers, they are made with high-quality plastic materials with durable attributes. The design helps poultry farmers achieve a constant water level without wetting the floor

4. Automatic feeding line, they include; automatic feeder pan, automatic feeder pan plastic, feed auger breeding tools

5. Automatic Drinking Line, They include 360 degrees stainless steel nipples, stainless still pipe

6. Gas Brooder: Stainless Steel

7. Battery cage: Q235 national standard bridge steel and galvanized mesh


Series of products to serve the poultry farm fully, click the name to learn more

1. Steel structure poultry house, opening type for hot countries and close type for cool countries

2. Poultry hatching equipment’s capacity of eggs up to 120,000+ to be hatching house

3. Chicken rearing cage and equipment of layer, day old chicken, brooder, broiler and chicken parents

4. Chicken feed processing equipment from feed crushing and mixing to stock to feeding chicken

5. Paper egg tray manufacturing equipment, the output from 1000 trays per hour to 6000 trays per hour

6. Egg processing equipment from automatic egg collection to packing egg to trays

7. Chicken slaughtering equipment from slaughter to vacuum package

8. Chicken manure cleaning and drying equipment to control the water content in chicken manure between 10% and 40%

9. Other poultry farm equipment are coming soon...

Bookmark our website and contact us now to discuss your modern poultry farm plan and quotation


Accessories

Accessories for rearing chicken are as follow; automatic feeding line, Manual feeder, manual drinker, automatic bell drinkers, gas electric heater, battery cage, automatic feeder and nipple drinkers

Specification

1. Gas heater; Heat transfer rate: Above 95%

Working pressure: 2800~5000pa

Voltage: 220-240v/50-60 Hz

Weight: 8kg

2. Electric heater; Heat transfer rate: Above 75%

Working pressure; 2600-4000pa

Weight: 8kg

Voltage: 180-200v/50-60 Hz

3. Automatic Bell Drinker: 10 -15 litres

Circular Feeder: 1.5-10kg

Manual Drinker: 1.5-10kg

4. Battery Cages; 120 capacity: Length 2.2m, width 2.4m, height 1.65m

96 capacity: Length 2m, width 2m, height 1.45m

128 capacity: Length 2m, width 2m, height 1.85m

160 capacity: Length 2.2m, width 2.4m, height 2m


Production process for automatic bell drinker

This drinker is recommended for average of 80 to 100 birds depending on the prevailing temperature in the facility. Approximately 10 to 12 of this drinker is needed to serve about 1,000 adult chickens. Areas with higher prevailing temperatures require more numbers. The water pressure on the drinker can also be regulated. It is important to install this drinker according to the required height (drinker lip should be a bit higher than the back of the birds) as this eases drinking and reduce water wastage and litter soiling. For bell type drinkers maintain depth at ½ to ¾ inch (12 to 20 mm), depending on drinker style, drinking activity, ambient temperature and litter conditions. Flush overhead lines in periods of high temperature to provide fresh and cool water for the birds


Production Process for automatic feeding line

Feeding equipment

Mechanical feeders are a necessity. When properly installed and maintained, these feeders save labour and feed. Generally, two lines of pan-type feeders are installed. These are placed on winches with pulleys and cables so the entire system can be raised to the ceiling during catching and clean out. If a controlled feeding program is used, pay special attention to bird density, feeder space, nutrient density and environmental conditions. The amount of time the birds are allowed to eat should increase with age

Bulk feed storage bins are also a necessary part of feeding equipment. The bins are located outside the house. An auger is used to move the feed from the bin into the house. Check with your contractor to see what capacity bulk-feed trucks are used so you can buy the correct size bins. It is preferable that two feed bins be used for each house or three bins for two houses. This will allow you to change feed quickly if it becomes necessary to medicate sick birds or meet feed withdrawal requirements

Watering equipment

Water is an essential nutrient for broilers. It is used for heat removal, digestion and formation of body tissues. Broilers should consume approximately 1.5 to 2.0 times as much water as feed on weight basis. A decrease in water consumption is known to substantially reduce feed consumption, which in turn can adversely affect feed conversion ratio. Contract poultry growers acknowledge the importance of providing an adequate supply of water, but improper water consumption can often occur if detailed management is not exercised during the daily operation

In the past, trough, bell and cup waterers were the primary types of waterers used in broiler production. Currently, almost all broiler houses are equipped with nipple waterers. Nipple waterers provide several advantages over other types of waterers. They reduce water wastage, litter caking and condemnations and they keep water cleaner. Broilers obtain water from nipple waterers by pecking the nipple, in turn activating a pin that releases water into the bird's mouth

Nipple waterer height needs to be managed properly to ensure adequate water consumption. Optimum nipple height should be as high as birds are able to stretch their necks and drink from the end of their beaks. However, if nipple height is increased so the bird must first elevate its breast and then stretch its neck to reach the nipple, then nipple height is too high and inadequate consumption can occur. Proper nipple height becomes very important with high environmental temperatures. Water meters can serve as excellent tools to evaluate sufficient water consumption


Advantages

1. Regular quantitative feeding

2. Automatic feeding line reduces farming costs, reduce the labour cost, no feeding feed waste

3. Manual drinkers is the easiest way of giving vitamins and other drugs through water

4. Battery cage increases high productivity in layers and curb birds exposure to diseases

5. The Automatic Bell Drinkers are very reliable with a higher drum capacity to ensure consistent delivery of clean water to flock

6. Electric heater controlled heating system that spread required amount of heat uniformly above the large area

7. One gas brooder can be used for 300 to 400 birds


Our services

1. Giving advice to customers on their available resources so as to give them suitable design

2. Delivering goods directly to customer’s location

3. We offer after sale services to all our customers

4. Guiding customers on how to build a suitable poultry design for free


Why you should choose our company

1. Our company offers the best sales services

2. We give in our best to supply our customers with outstanding products

3. We offer after sale services to all our customers far and near


Frequently ask questions

Q: Are you trading company or manufacturer?

A: We are manufacturer

Q: How long is your delivery time?

A: We deliver within 48 hrs base on the location if we have the goods in stock but if we don't have the goods in stock, it takes maximum of 3 month to ship the goods from China

Q: What are the installation cost?

A: Their charges are based on the nature and location of the work they want to do

Q: What is the warranty on your goods?

A: All our goods have one year warranty, after the installation have been done

Q: What should we do if the parts of the machine are broken within warranty?

A: We would express the free replacement parts during the warranty date
