Basic information

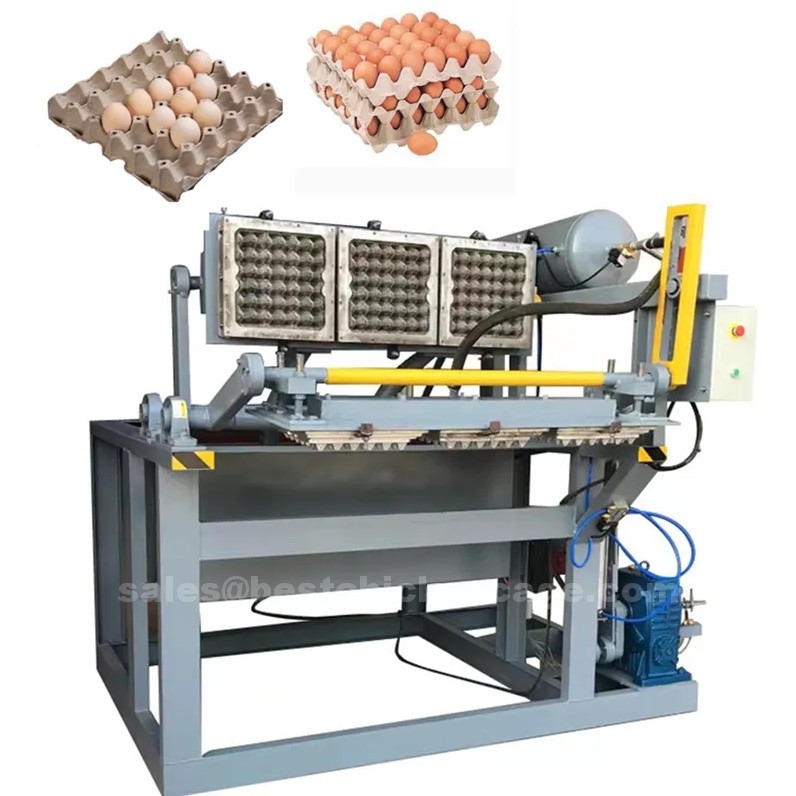

The egg tray equipment is manufacturing machine which is designed by our company and it has become more and more popular in the international market. We are trying our best to meet every client’s requirement. The egg tray machine has the function which uses the plastic, waste paper to produce paper egg carton, like corrugated paper, book, old magazine and old newspaper
Therefore, the idea of introducing this kind of machine will greatly reduce environmental pollution and save non-regenerated resources, government in particular is in support of any company that recycles used materials so as to avoid environmental disaster and diseases
To achieve the environmental friendly goal and comply with the trend of times, many enterprises begin to invest paper egg carton industry
We offer a customization service. You only need to provide pictures or samples to us, and we can customize and produce the corresponding molds. Now, we offer seven models from small to large production automatic models. Moreover, we will arrange the shipment quickly as you place the order. When machines are shipped to your area, the installment service is offered fast. Get high ROI from this business now
Product description
It is an advanced equipment and has the function of automatic handle loop bonding (speed up to 75pcs per min, equal to 5 worker's bonding speed or 5 handle, loop sealing machine), suitable for the printed non-woven fabric, different specs of non-woven handle bags flat bag, this can replace the traditional handle sealing, reduce excess labour and the manufacturing cost
Egg tray machine makes full use of plastic and waste paper to make egg trays. There are rich resources for low-cost paper waste in every country. Now, plenty of countries have a high demand for paper egg trays instead of plastic trays because of the degradable feature. D-cut bag, bottom or side gusset bag, vest bags and drawstring bags etc. can be made by this machine
In addition to egg trays, our equipment can also produce cup trays, shoe trees, fruit trays, and seedling trays
Series of products to serve the poultry farm fully, click the name to learn more
1. Steel structure poultry house, opening type for hot countries and close type for cool countries
2. Poultry hatching equipment’s capacity of eggs up to 120,000+ to be hatching house
4. Chicken feed processing equipment from feed crushing and mixing to stock to feeding chicken
6. Egg processing equipment from automatic egg collection to packing egg to trays
7. Chicken slaughtering equipment from slaughter to vacuum package
9. Other poultry farm equipment are coming soon...
Bookmark our website and contact us now to discuss your modern poultry farm plan and quotation
Features
1. Egg tray making equipment has wide applications in the packaging industries related to eggs. It has good safety, environmental-friendly feature, good stability and long time life span. With the technology improving, egg tray machine has more functions compared with the past decades
2. Moreover, it is easy operation and good final trays are popular. Its main power is electricity. It is driven by an electrical motor. Then the gearbox is driven. The main power is delivered to the main motor. The forming parts will shape the egg trays quickly. Then put the egg trays on the conveyor for the next process. The main raw material for egg tray production is steel
3. Steel is divided into three kinds, including finished steel, special steel, high-quality steel. We adopts high quality steel. It has suitable resistance and strong plasticity. Now, our egg tray making machine has gone through several upgrades and has comprehensive functions and a large capacity. It can help you to improve productivity
4. Fast investment return, highly cost effective
5. Excellent performance of rotary forming technology
6. Match with highly effective 6-pass dryer
7. Stronger and less deformed product
Working procedure
Industrial packaging (ordinary type) egg tray machine applies steel tube structure , armour plate (or stainless steel according to the contract ) pulp tank .we apply vacuum absorbing forming method to make embryo product with the mould by absorbing and dehydration ,and then convey the embryo product to the dry place with transfer mould by manual work or automatically. The feature is up-down forming machine, turning transfer mould
Application range
Industrial packaging such as electronic, mechanical product and so on, multifunctional industrial packaging egg tray machine applies steel tube structure , armour plate (or stainless steel according to the contract ) pulp tank and with shower on the top .we apply vacuum absorbing forming method to make embryo product with the mould by absorbing , scouring , and dehydration ,and then convey the embryo product to the dry place with transfer mould by manual work or automatically .The feature is : up-down forming machine ,turning transfer mould , symmetrically springing water , the edge of the product is trim .Application range industrial packaging such as electronic ,mechanical product and so on
Egg tray manufacturing process
1. Pulping system
Put water and waste paper into the hydraulic pulper in the ratio of 3:1 for 40 minutes’ mixing. Then you can get the homogeneous pulp. This is the most essential material for making paper egg containers. The main equipment involved includes hydraulic pulper, pulp refiner, pulp and water pumps. Also, you need water and pulp pools. In general, only one worker is needed to put the waste paper and water into the hydraulic pulper by a ratio of 1:3. Then the paper pulp will be pumped into the refiner and be fixed more evenly. If you want to change the color, you can add coloring agents here. This part is mainly driven by electricity. If you have limited space
2. Moulding system
Stirred pulp will be adsorbed to the molding mold. At this stage, excess water will be adsorbed to the sewage pump for storage. Waste water can put into the next production. After the forming machine mold adsorbs the pulp, the product is formed. The main equipment is the pulp molding machine. Except that, it also includes vacuum pump, air compressor, negative pressure tank, e.t.c. when the prepared pulp will be transferred to the pulp molding system through the pump, it will be shaped on the forming molds with the help of the vacuum pump. When the forming molds rotate to the transfer mold, the wet trays will be moved using the air compressor. Then the transfer mold will send the trays to the drying system
3. Drying system
There are 3 kinds of drying methods available for your choice. Customers can choose among natural drying, brick drying, and metal drying according to the budget, capacity and local conditions. With the drying machine, water in the wet tray will be evaporated by means of high temperature, So that the egg cartons can be used normally
4. Packaging system
This is generally optional. The packaging machine can help you pack the produced egg trays. If you are short of manpower, the qualification will be a good assistant. With the help of package machine, the egg trays and egg cartons can go to the market faster
Drying methods for paper egg tray
1. Brick egg tray drying
This way needs civil construction, single storey building and large floor space. It is suitable for customers whose output demand is above 2500 pieces per hour. This drying method is not affected by the weather, and the drying effect of egg trays or egg boxes is excellent. Transporting the wet tray to dry tray takes about 20 minutes. The heat source can be coal-fired, natural gas, diesel, liquefied petroleum gas and other combustion liquids and gases
2. Multi layer metal drying
It is automatic drying, and this drying method is not affected by the weather. It needs a small footprint and no civil construction. The metal egg tray dryer has a beautiful appearance, good insulation effect, good drying effect of egg tray and can be installed easily. By using metal drying, the wet tray to dry tray takes about 25 minutes. The heat source can be LPC, LNG, diesel and natural gas
Our services
1. Our company implement international quality standard strictly to produce and test the quality
2. The entire steels, profiled bar, pipes and component used for the machine, we will conform to the type of the contract strictly
3. In our company, all of the machines will be checked and tested strictly. Unqualified accessory will never be installed and the machine must run continuously 24 hours without producing, and test work for 2 hours before it is stocked
4. If there is any problem in our machine, we will give the customer an approving answer as soon as possible
Frequently ask questions
Q: What is the material used in making egg tray?
A: Egg cartons come in three egg citing flavors pulp, foam and plastic. Pulp cartons are usually made from a mixture of paper, water and grass fibers
Q: What is the function of egg tray?
A: Trays are usually used to store fresh eggs from farms or at farmers' markets. Plastic egg trays are also used by egg processors to wash and sanitize eggs. A cardboard sleeve or additional trays are used to protect eggs when using a tray format
Q: How do you make an egg unbreakable?
A: Wrap the egg in cling film, place in your palm and close your hand around it so your fingers are completely wrapped around the egg. Squeeze as hard as you can. The egg should remain in one piece. If you are feeling extra brave you could try it without the cling film
Q: How do I start my own egg tray business?
A: To start with an egg tray making business one needs to set up a pulp molding plant that contains egg tray making machines used for manufacturing egg trays, boxes, and other containers as required. The molded pulp in a pulp molding plant is a packaging material that is generally made from waste and recycled papers
