Automatic system for H frame pullet poultry cage
Time : 2006-02-08

Basic information

Baby chicks are really quite easy to raise in pullet poultry cage. With a few pieces of equipment and a small place to put them, success in brooding and rearing is virtually assured, during this period of the bird's life, the most important needs are for warmth, protection, feed, and water. When growing chicks of any species-chickens, turkeys, pheasants, or almost any other production bird each of these aspects must be considered

In nature, chicks hatch after 2 to 4 weeks of incubation by the parents, most often the hen. The hatched chicks provide the stimulus to the hen to change her work from incubating eggs to brooding young. This form of brooding chicks is the easiest if only a few chicks are raised because the mother hen does all the work, novice growers are not advised to try artificial brooding for artificial chicks; that is, chicks such as pigeons, doves, finches, and parrots that remain in the nest to be cared for and fed by the parents

Many of these chicks are naked, blind, and unable to walk for several weeks after hatching and require around-the-clock care and feeding. The application of rearing equipment are based on their functions, hence, there is no general application of rearing equipment but the aims of each equipment is to enhance the smooth running of the farm

Chick brooders can be elaborate pieces of equipment such as H type tiered battery brooders cage. In both cases, the most important aspect is to maintain conditions that allow the birds to thrive. Chicks require a balanced diet if they are to grow and thrive. When starting chicks, always feed a starter diet that is formulated to give the birds the proper levels of nutrients. They should be fed free choice; that is, feed is available all the time

Supplement only minimally with other feeds. Because birds in battery brooders are kept in multiple layers, many chicks can be brooded in a relatively small amount of floor space. There are many designs. Most include an electric heat source at one end, usually in an area that is somewhat enclosed; another area, about two to three times the size of the heated area, is not heated

Automatic system for H frame pullet poultry cage


Basic accessories in H type pullet poultry cage

1. Manual drinkers, it is used for birds' brood on the floor especially for chicks during their first early weeks

2. Nipple drinkers, can be used both in deep litters and in battery cage system. When used in deep litters, it is attached with cup under the nipple to prevent wet litters but while used in cage, it can be used ordinarily

3. Battery cage, this is the assembled mesh welded together in rows and compartment to give birds a comfortable living

4. Automatic feeder supplied to the entire length of the poultry house by specially designed feed troughs with auger type or chain type devices to move the feed from the feed bins to the other end

5. Gas heater, natural gas is connected to heating element which is hanged 3 to 5 feet above the chick to provide heat

6. Electric heater, this type of brooder is provided with heating elements and pilot lamps and some cases thermometer is provided to record the temperature


Series of products to serve the poultry farm fully, click the name to learn more

1. Steel structure poultry house, opening type for hot countries and close type for cool countries

2. Poultry hatching equipment’s capacity of eggs up to 120,000+ to be hatching house

3. Chicken rearing cage and equipment of layer, day old chicken, brooder, broiler and chicken parents

4. Chicken feed processing equipment from feed crushing and mixing to stock to feeding chicken

5. Paper egg tray manufacturing equipment, the output from 1000 trays per hour to 6000 trays per hour

6. Egg processing equipment from automatic egg collection to packing egg to trays

7. Chicken slaughtering equipment from slaughter to vacuum package

8. Chicken manure cleaning and drying equipment to control the water content in chicken manure between 10% and 40%

9. Other poultry farm equipment are coming soon...

Bookmark our website and contact us now to discuss your modern poultry farm plan and quotation


Product description

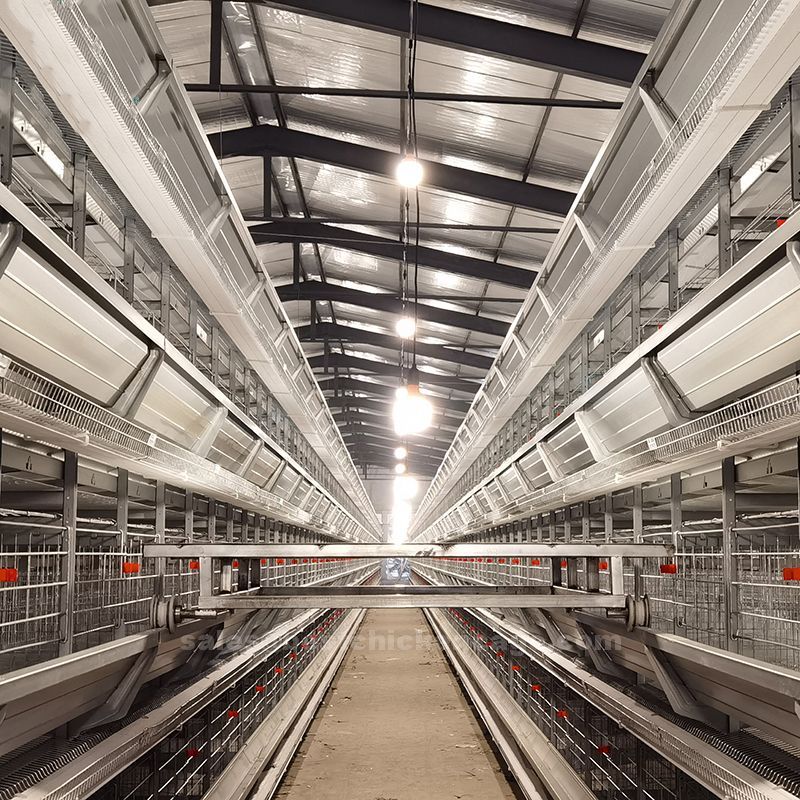

H frame pullet poultry cage systems are available with 3-4 decks, the appropriate size for the entire period prior to the laying stage. This system was designed with greater height and the ability to raise the nipple drinkers to accommodate to the growing size of the pullets. This allow for ease of access to water during the entire pullet period prior the laying stage. This system was engineered with a cage stand and reinforce feeder trough support in Heavy galvanized steel every 4 feet on every tier

This H frame pullet poultry cage is created with fully automated system, which increases efficiency and lower labour cost. All H frame pullet poultry cage Systems are equipped with polypropylene manure deflectors to a bottom pit, without maintenance required until the end of the chicks

The baby chicks cage also known as brooder cage or pullet poultry cage is used for raising baby chicks from 0 to 7 weeks. It can increase the feeding density, save construction and land area, and improve the chicks' survival rate and feed efficiency. Generally, chickens that are between 0 and 50 days are called chicks

H type pullet poultry cage is designed for pullets which are reared1 week to 10 weeks old. One day layer chicks can be directly put into the cage and raised to 12 weeks to 16 weeks, then transfer to egg laying chicken cages for egg collection. H frame pullet poultry cage is equipped with manure scrapper but sometimes equipped with automatic manure belt system to collect the chicken manure outside the house


Specification

1. Gas heater heat transfer rate, above 95%, working pressure, 2800~5000pa, Voltage, 220-240v/50-60 Hz, Weight 8kg

2. Electric heater, Heat transfer rate: Above 75%, working pressure, 2600-4000pa, Weight, 8kg, Voltage, 180-200v/50-60 Hz

3. Manual Drinker, 1.5-10kg

4. Battery Cages,160 capacity, Length 2.2m, width 2.4m, height 2m

Automatic watering equipment

Water is an essential nutrient for chicks. It is used for heat removal, digestion and formation of body tissues. Chicks should consume approximately 1.5-2.0 times as much water as feed on weight basis. A decrease in water consumption is known to substantially reduce feed consumption, which in turn can adversely affect feed conversion ratio. Contract poultry growers acknowledge the importance of providing an adequate supply of water, but improper water consumption can often occur if detailed management is not exercised during the daily operation

In the past, trough, bell and cup waterers were the primary types of waterers used in broiler production. Currently, almost all broiler houses are equipped with nipple waterers, nipple waterers provide several advantages over other types of waterers. They reduce water wastage, litter caking and condemnations and they keep water cleaner. Broilers obtain water from nipple waterers by pecking the nipple, in turn activating a pin that releases water into the birds mouth

Nipple waterer height needs to be managed properly to ensure adequate water consumption. Optimum nipple height should be as high as birds are able to stretch their necks and drink from the end of their beaks. However, if nipple height is increased so the bird must first elevate its breast and then stretch its neck to reach the nipple, then nipple height is too high and inadequate consumption can occur. Proper nipple height becomes very important with high environmental temperatures. Water meters can serve as excellent tools to evaluate sufficient water consumption

Automatic feeding system

Automatic layer feeding system offered by our company equipped with a complete of layer drinking equipment, which including into feed silo, automatic ladder type layer feeding system, feed troughs and so on. Farmers should consider about the technology power strengths, faithful and full set of installation service and after sale service. Feed silo is a kind of dry powder feed or granular feed storage equipment which is suitable for large scale and medium sized farms, and it can feed the feeding equipment at the discharging port. Under the condition of keeping hens in good breeding and management environment, the poultry feeding system is very important to the performance of layer. Automatic ladder type layer feeding system are scientifically designed, reasonable structure, durable, easy to operate

Automatic manure removal belt

The poultry manure removal system is carried out using material of polypropylene belts as often as every 2 days, depending on the length of the chicken industry. The poultry manure was transported to the outside where it was collected on trucks.  And the percentage humidity of the manure varied between 80% and 85%. Once removed, the manure is transported to the upper belt of the manure drying system where a rake spreads it out, forming a fine conditions for layer environment. Via a tunnel that connects with the shed and with the aid of powerful ventilators, the system uses the heat generated by the birds themselves to dry the layer of manure. Then, it is allowed to fall to a lower belt of the tunnel after another drying process


Advantages

1. Regular quantitative feeding

2. High density polypropylene plastic

3. Manual drinkers is the easiest way of giving vitamins and other drugs through water

4. Battery cage increases high productivity in layers and curb birds exposure to diseases

5. Electric heater controlled heating system that spread required amount of heat uniformly above the large area

6. One gas brooder can be used for 300 to 400 birds

7. it's effective in the removal of manure without spillage and this contributes to improved hygiene and increases the health and well-being of the birds

8. Distance between two sides cage which produces a better ventilation effect


Our service

1. Giving advice to customers on their available resources so as to give them suitable design

2. Delivering goods directly to customer’s location

3. We offer after sale services to all our customers

4. Guiding customers on how to build a suitable poultry design for free


Why you should choose our company

1. Our company offers the best sales services

2. We give in our best to supply our customers with outstanding products

3. We offer after sale services to all our customers far and near


Frequently ask questions

Q: Can I use pullet poultry cage to rear broiler chicks?

A: No, there is another cage designed for broiler chicks

Q: Does this pullet poultry cage come with necessary accessories?

A: Yes, it comes with both drinkers and feeders

Q: Are you trading company or manufacturer?

A: We are manufacturer

Q: How long is your delivery time?

A: We deliver within 24 hrs base on the location if we have the goods in stock but if we don't have the goods in stock, it takes maximum of 3 month to ship the goods from China

Q: What are the installation cost?

A: Their charges are based on the nature and location of the work they want to do

Q: What is the warranty on your goods?

A: All our goods have one year warranty, after the installation have been done
