How manure scraper machine works
Time : 2020-03-11

Basic information

In order to be able to work quickly and efficiently and to promote the welfare of your chickens, it is important that passages and cubicles are kept clean and dry, the adequate and fast removal of manure is therefore necessary. Moisture and manure on floors make for slippery surfaces and an excellent living environment for bacteria

The manure scraper machine offers the best solution to provide a hygienic environment for poultry breeding and rearing. The wastes can be transported to the storage or treatment area by pumps, other mechanical means, or gravity, and full automation can usually be achieved. We believe in the importance of heavy duty reliable systems to transport the manure from the sheds to their final destination either via trucks or conveyors to the stocking area

How manure scraper machine works


Product description

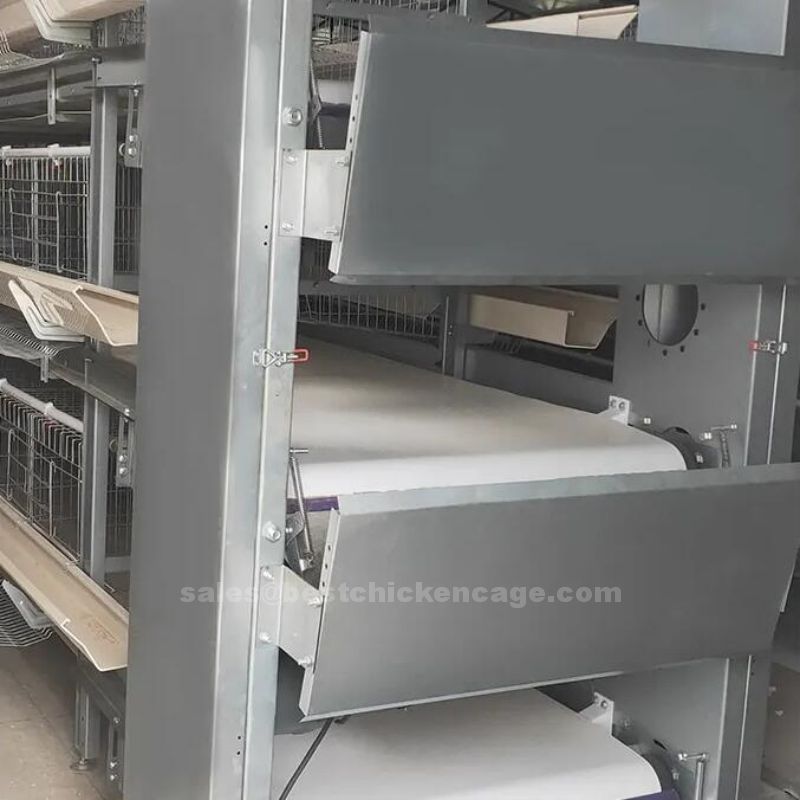

The manure scraper machine adopts a full set of hot dip galvanizing technology and is made of high quality steel plate, which has the characteristics of corrosion resistance and long service life. The moving bearing belt moves along the length direction of the cage group to transport the chicken manure to one end, which scraped off by the scraper plate set at the end

Manure scraper machine is primarily used to eradicate and get rid of the poultry manure in poultry farming cages. This helps to provide an optimal cage environment for your chickens the equipment comes in either two-blade or three blade varieties, depending on the conformation of your poultry pen

Manure scraper machine is use for the removal of manure and other wastes from the chicken buildings. It helps in the frequent removal of waste, they reduce odour and gas production within the building from stored wastes and improve the environment. The manure scraper machine adaptables to gestation, farrowing, nursery and finishing buildings and may be used either under slats or in open gutters. They can be installed in new buildings or incorporated into existing buildings


Series of products to serve the poultry farm fully, click the name to learn more

1. Steel structure poultry house, opening type for hot countries and close type for cool countries

2. Poultry hatching equipment’s capacity of eggs up to 120,000+ to be hatching house

3. Chicken rearing cage and equipment of layer, day old chicken, brooder, broiler and chicken parents

4. Chicken feed processing equipment from feed crushing and mixing to stock to feeding chicken

5. Paper egg tray manufacturing equipment, the output from 1000 trays per hour to 6000 trays per hour

6. Egg processing equipment from automatic egg collection to packing egg to trays

7. Chicken slaughtering equipment from slaughter to vacuum package

8. Chicken manure cleaning and drying equipment to control the water content in chicken manure between 10% and 40%

9. Other poultry farm equipment are coming soon...

Bookmark our website and contact us now to discuss your modern poultry farm plan and quotation


Specification

1.It has an automatic working system of 2 or 3 rows of chicken cage

2. The power is 1.5KW and voltage is 380V

3. Remove panel scraper is about 8 mm thick steel sheet

4. Motor machine has 220 V single phase power supply and 380 V three-phase power supply output optional

5. Accessories such as heels, ropes, nuts and so on

6. Manure waste makes hollows and space for manure removal system

7. The floor is made of Concrete

8. Application that bring chicken dropping outside house


Instructions

1. Cable and chain drives, pulleys, and idlers can be hazardous if they are not shielded or otherwise protected from access

2. Sealed electrical components should be used in the corrosive atmosphere associated with manure gutters and should be inspected frequently to determine whether any potential safety hazards are developing

3. Automated systems should be disconnected prior to maintenance to prevent injury caused by unexpected scraper operation

4. Operators should use similar precautions with storage units associated with scraper units as with any other liquid manure systems. Deaths from asphyxiation or hydrogen sulfide exposure have resulted from operators entering storage tanks or from improperly ventilated covered storage systems


It working principles

1. It is desirable to keep drive units up and out of these areas whenever possible. Drive units located near the scraper discharge should not be located where damage can occur if the receiving pit discharge system fails

2. The receiving pit for scraper discharge should have a vertical or steeply sloping side to allow the waste to move freely from the scraper. The pit size and shape depend upon the frequency of removal and the method used to remove waste for storage or treatment. Transport alternatives include gravity flow, cross scrapers, augers, centrifugal pumps, piston pumps, and pneumatic conveyors

3. Efficient manure removal has a major impact on barn hygiene, because healthy animals depend on good legs and hooves. Our manure scraper systems were developed according to the ‘clean floor, healthier animals’ principle for good reasons


Benefits of manure scraper machine

1. Durable, simple and maintenance friendly construction

2. Remarkably smaller energy consumption compared to older systems

3. Efficient urine separation keeps passages dry and solid and reduces ammonia emission

4. Fold drive functions, which makes the system stress free also for more sensitive animals

5. Cleaning result is based on the best materials and careful design, not to heavy energy consumptive weight

6. Universal scrapes wing construction, the same wing can be used regardless of the surface material, tilt and cross shaft location of the manure passage

7. Guiding user interface prevents execution of wrong functions and enables to prevent maintenance


Application

1. The manure scraper machine is primarily used with the battery cage system to dry and get rid of the poultry manure in poultry farming cages. It also keeps poultry cages clean and hygienic

2. This will provide an optimal cage environment for your chickens

3. The equipment comes in three blade varieties and is suitable for your poultry farm

4. It can be used for animal houses such as chickens

5. It is familiar to poultry farmers that removing manure manually by people involves much manpower, costs, management, and high intensity of labour chickens

6. Suitable for various types of floors such as solid concrete floors, slatted floors, rubber floors and low emission floors

7. Parts can be easily replaced due to its modular design

8. Minimal maintenance costs

9. Unlimited useful life

10. Most animal friendly design

It is greatly use to reduce the labour intensity and maintains a good indoor air environment

11. It is recommended for specially constructed cage systems with manure pits

12. Its electric motor attributes help make the routine manure removal process efficient

13. It is familiar to poultry farmers that removing manure manually by people involves much manpower, costs, management, and high intensity of labour


Why you should choose our company

1. Our products are thoroughly checked by experienced quality controllers, on defined parameters before their final shipment into the market

2. We provide follow-up on technical support services to ensure there is a stable operation of our customers’ poultry product

3. We have built a team that solves series of poultry problems like consultation, site survey, sample analysis and installation

4. We ensure the safe and non-destructive delivery of equipment


Our services

1. We offer the best equipment which meets our customer’s every requirement

2. We have long time and rich experience on the products manufacturing. if any machine operation questions after sales, we will reply you within 24 hours with solution. And customers can be rest assured

3. We offer excellent services in all our equipment

4. We give customers detailed information on the product they want to buy


Frequently ask questions

Q: How do I keep the chicken house clean as possible using a manure scraper machine

A: The manure scraper machine helps in the removal of chicken manure in some tough areas of the poultry house

Q: Is manure scraper machine necessarily needed in a poultry house

A: Yes it is necessary to have a manure scraper machine in your poultry house because it helps to keep the floor clean and dry and it helps to improve the hygiene and prevents infections
